Ford Falcon Facts
In between the ZD’s twin vertical headlights was a new egg-crate grille, inspired by the successful US Lincoln Continental.
Revised tail lights and simpler hubcaps completed the minor styling changes.
ZD Fairlane(1970 - 1972)
Bucket seats were now standard, featuring a folding centre armrest that became a bench seat. The most important improvement was to the six cylinder. New to the XY Falcon range was the 250, which was almost V8 size. It was better suited to the heavy Fairlane than the smaller 3.6 unit.
ZD Fairlane Photos (photos are cropped, click to enlarge)

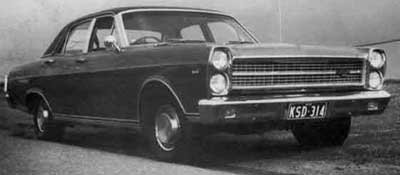

Ford ZD Fairlane
On Sale: November 1970 - March 1972
How do I know it's a ZD? Fairlane now has one grille instead of two, with an egg-grate design, tail lights have horizontal divisions. Fairlane Custom has chrome side strip with vinyl insert, Fairlane 500 has rear chrome strip across boot.
Models available:
Fairlane Custom:
Fairlane 500:		 sedan
sedan
What’s new? Egg-crate grille, new 6 cylinder engine from XY Falcon
Firsts:
Prices at introduction: Custom sedan - $3985, 500 sedan - $4395
Total ZDs built: 12797
Transmission: 3 speed manual, 4 speed manual, 3 speed Cruisomatic
Engines:
4.1 250 cubic inches (4.1L) 6 cyl
Bore and stroke: 3.68 x 3.91 inches
Power: 155bhp (116kW) at 4400rpm
Torque: 240lb-ft (325Nm) at 1600rpm
Pushrod overhead valve, 2 valves per cylinder
Fuel system: Single throat carburettor
Compression ratio: 9.3:1
5.0 302 cubic inches (5L) V8
Bore and stroke: 4 x 3 inches
Power: 220bhp (164kW) at 4600rpm
Torque: 300lb-ft (407Nm) at 2600rpm
Pushrod overhead valve, 2 valves per cylinder
Fuel system: Two barrel carburettor
Compression ratio: 9.5:1
5.8 351 cubic inches (5.8L) V8
Bore and stroke: 4 x 3.5 inches
Power: 250bhp (186kW) at 4600rpm
Torque: 355lb-ft (481Nm) at 2600rpm
Pushrod overhead valve, 2 valves per cylinder
Fuel system: Two barrel carburettor
Compression ratio: 9.7:1
Fuel consumption: 18 mpg (Fairlane 500, Wheels magazine)
Performance (Fairlane 500 351 V8, 3 spd auto):
Top speeds in gears
1st: 52mph (84km/h)
2nd: 76mph (122km/h)
3rd: 116mph (188km/h)
0-60mph (0-97km/h): 8.9 seconds
Standing quarter mile (402m): 16 seconds
Suspension:
Front
Independent with coil springs and hydraulic shock absorbers, stabiliser bar		 Rear
Live axle, semi-elliptic leaf springs with hydraulic shock absorbers
Brakes:
Front
10 inch drums, 11.25 inch power assisted discs on Fairlane 500
Rear
10 inch drums
Steering: Recirculating ball, power steering standard on Fairlane 500
Wheels: Pressed steel disc 5JJ wheels with safety rims, optional radial tyres 6JJ rims
Tyres: Crossply 6.95 x 14, special ER70 x 14 wide oval, radial ply optional on all models
Dimensions:
Length: 196.3 inches (4986mm)
Width: 73.5 inches (1867mm)
Height: 55.8 inches (1417mm)
Wheelbase: 116 inches (2946mm)
Front track: 58.9 inches (1496mm)
Rear track: 58.5 inches (1486mm)
Kerb weight: 3120lb (1415kg)
Turning circle: 41.1ft (12.5 m)
Fuel tank: 16.4 gallons (74.6 litres)
Boot space: 30 cubic feet (850 litres)		 Interior dimensions:
Front headroom: 38.3 inches (973mm)
Rear headroom: 37.6 inches (955mm)
Front shoulder room: 58 inches (1473mm)
Rear shoulder room: 58 inches (1473mm)
Front hip room: 59.6 inches (1514mm)
Rear hip room: 59.5 inches (1511mm)
Front legroom: 42.1 inches (1069mm)
Rear legroom: 38.6 inches (980mm)
Features: Legend


Automatic
Air conditioning
Power steering
Heater
Radio
Tape player
Carpet
Bench seat
Bucket seats
Seats
Seat belts
Clock
Courtesy lights
Vinyl roof
Sunroof

Fairlane Custom
opt
opt
opt
•
opt
opt
•
opt
•
vinyl
front lap-sash
opt
•
opt
opt

 Fairlane 500
•
opt
•
•
opt
opt
•
opt
•
vinyl
front lap-sash
•
•
opt
opt
Awards:
Rivals: Holden HK Brougham, Holden HQ Statesman, Chrysler VG VIP, CH Chrysler
