eb cfi cam?

This is a general discussion forum, open to all participants

eb cfi cam?

Postby MrTony-G » July 29th, 2013, 1:42 am

i've been searching around here for a while tonight trying to find info on ea/eb cfi cams, coz I heard they make a good replacement for ef/el 4.0 cam instead of going to a wade grind. basically, is it true that these are a fairly big cam compared to std ef/el 4.0 cam and are they a direct fit on a 94da head using the cams original rocker gear(3.9)? we have the cam and we have the engine, and if the 2 can be married with good results and it will work then we will go ahead but if its all bullshit rumors then we wont bother. looking at the 2 cams side by side they are very different in profiles, but then the rocker arms are different to eachother as well. if there is a thread on here somewhere about this, or if anyone can shed some light on this for me it would be greatly appreciated.
MrTony-G
Cranking Over

Posts: 3
Joined: July 29th, 2013, 12:45 am
Has Liked: 0 time
Been Liked: 0 time

Re: eb cfi cam?

Postby apoc » July 29th, 2013, 9:14 am

Just get a wade cam, the CFI cam is barely different, if at all.
If anything, just get an EF/EL xr6 cam (even EDxr6) - 94DA-95DA with rocker gear and it will be better than a CFi one IMO.
1974 XB GT here, 1975 XB GT, 1972 XA GT, 1970 Mach 1 Mustang, 1946 Jailbar, 1983 XE GL, KTM 200EXC, XT500SM & various wrecks
EB Falcon, AU2 XR8, AU3 XR6 here
1992 Nissan Patrol - 2" lift, 33s, TB42e, LPG here
2014 FG GT 335 - Silhouette, ZF here
User avatar
apoc
Breaking Traction

Posts: 1980
Joined: February 18th, 2008, 9:14 pm
Has Liked: 136 times
Been Liked: 100 times

1992 Ford Falcon

Re: eb cfi cam?

Postby MrTony-G » July 29th, 2013, 10:34 am

well we had the 2 cams sitting side by side, and I can assure you they are very different in terms of lift and duration. the lobe shape is completely different, the cfi cam looking to be almost twice the duration of the std ef cam. the reason im asking is because the rumour is these cams are bigger than the mild wade grinds, but I cant find any factual information anywhere that has the specs of it and also wether or not it could be used on the later head. we have a el xr6 cam here as well, but haven't compared it with the 3.9 unit yet as its still in an engine at this stage.
MrTony-G
Cranking Over

Posts: 3
Joined: July 29th, 2013, 12:45 am
Has Liked: 0 time
Been Liked: 0 time

Re: eb cfi cam?

Postby misk » July 29th, 2013, 1:31 pm

The cam will fit any ea - au head and there is no reason to change the standard rocker setup unless you fit an au grind.
XG Panelvan
EF bottom end with ported EB head, valve springs, EL ECU & J3 chip, crane HI6 CDI & MSD coil, LC-1 wideband & SSI-4 logger

soon - .595" lift cam, GT4202, forged AU engine and built head, ems stinger 4424 ecu, powerglide with 5500 high stall etc - next, bellhousing

XH ute daily - DOHC BA XR6 engine, T5, AU3 ECU with TI J3 chip, ported BBM, 3" stainless intake - 12" sub, tub liner and hard lid - mass skids and epic tyre carrying capabilities :)
User avatar
misk
Melting Pistons

Posts: 10047
Joined: October 14th, 2008, 10:31 am
Location: dandenong
Has Liked: 298 times
Been Liked: 295 times

Re: eb cfi cam?

Postby Jayedxr6 » July 29th, 2013, 2:58 pm

Buy these off me !

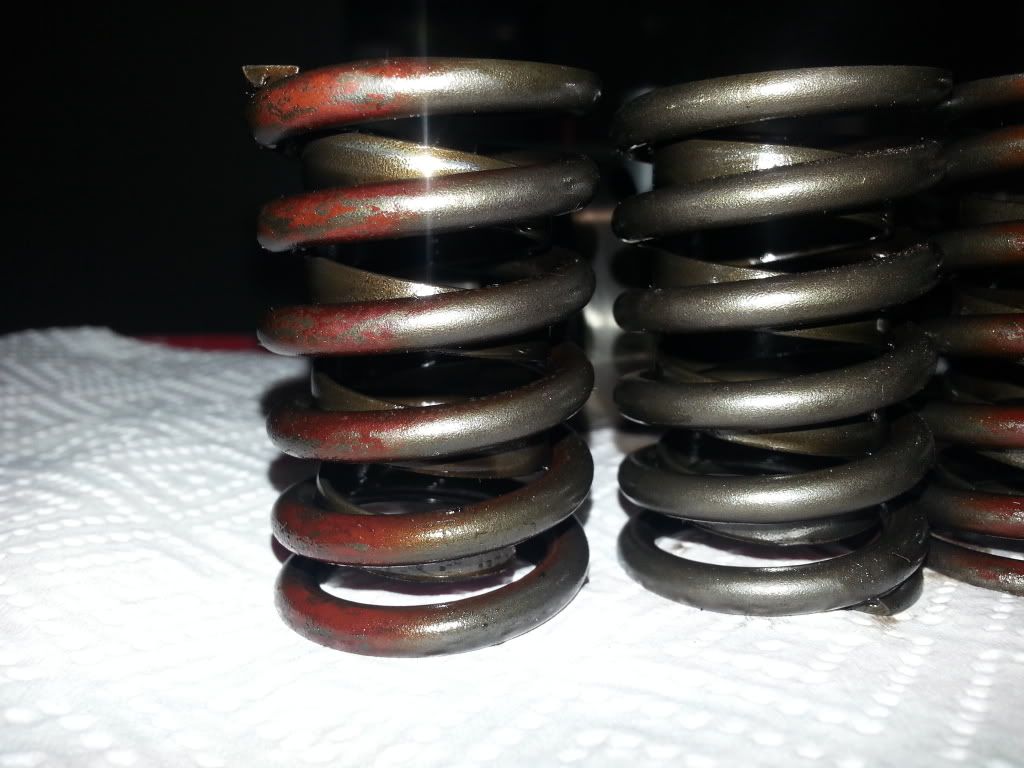

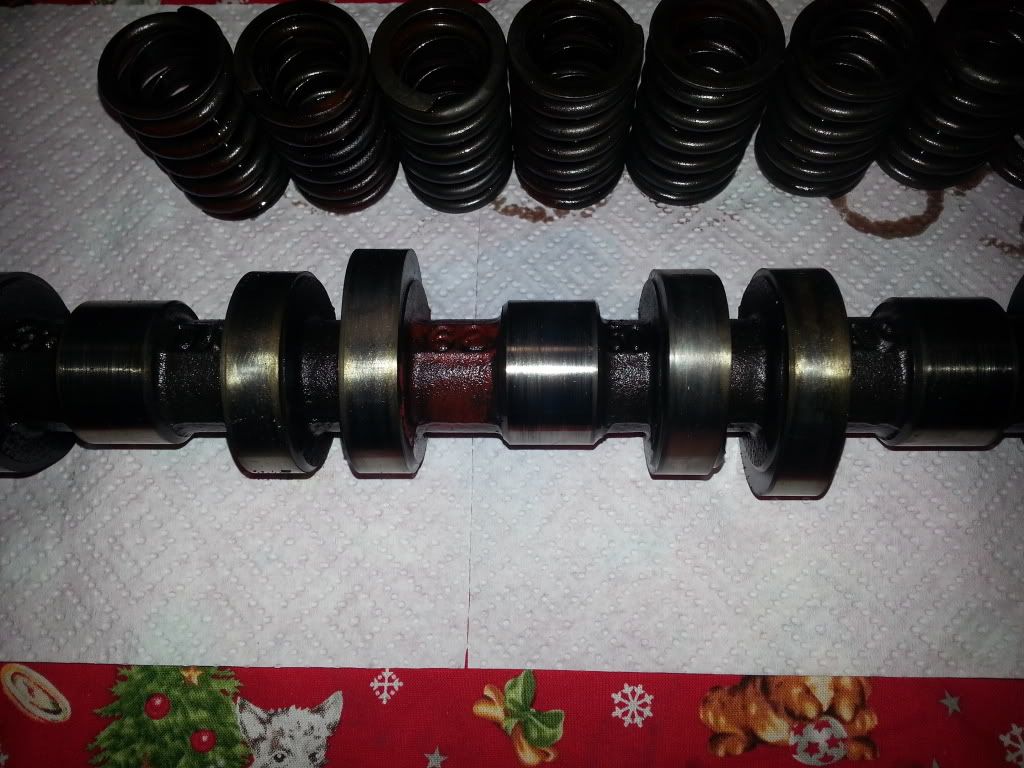

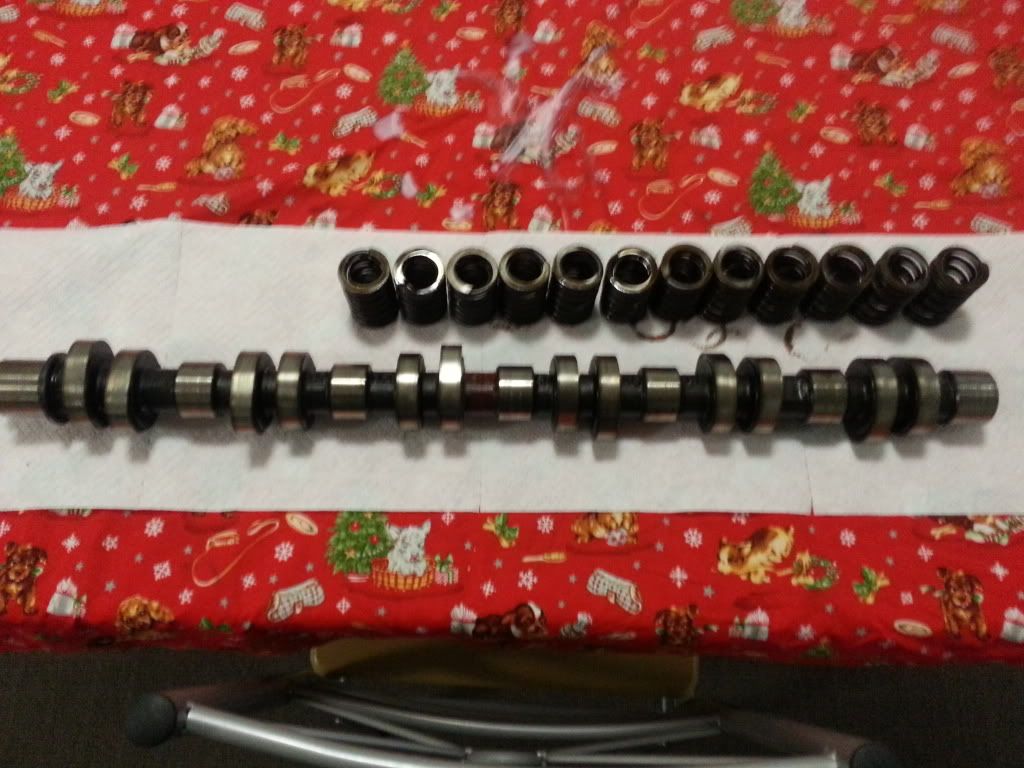

Xr6 valve springs, xr6 cam - ea/el

Originally from el xr6 head.

Xh falcon turbo. 420rwhp 16 psi.
User avatar
Jayedxr6
Breaking Traction

Posts: 1954
Joined: November 26th, 2011, 6:40 pm
Has Liked: 179 times
Been Liked: 149 times

1994 Ford ED Falcon XR6

Re: eb cfi cam?

Postby Jayedxr6 » July 29th, 2013, 2:58 pm

Buy these off me !

Xr6 valve springs, xr6 cam - ea/el

Originally from el xr6 head.

Xh falcon turbo. 420rwhp 16 psi.
User avatar
Jayedxr6
Breaking Traction

Posts: 1954
Joined: November 26th, 2011, 6:40 pm
Has Liked: 179 times
Been Liked: 149 times

1994 Ford ED Falcon XR6

Re: eb cfi cam?

Postby Jayedxr6 » July 29th, 2013, 2:59 pm

Sorry about the double post!
Xh falcon turbo. 420rwhp 16 psi.
User avatar
Jayedxr6
Breaking Traction

Posts: 1954
Joined: November 26th, 2011, 6:40 pm
Has Liked: 179 times
Been Liked: 149 times

1994 Ford ED Falcon XR6
